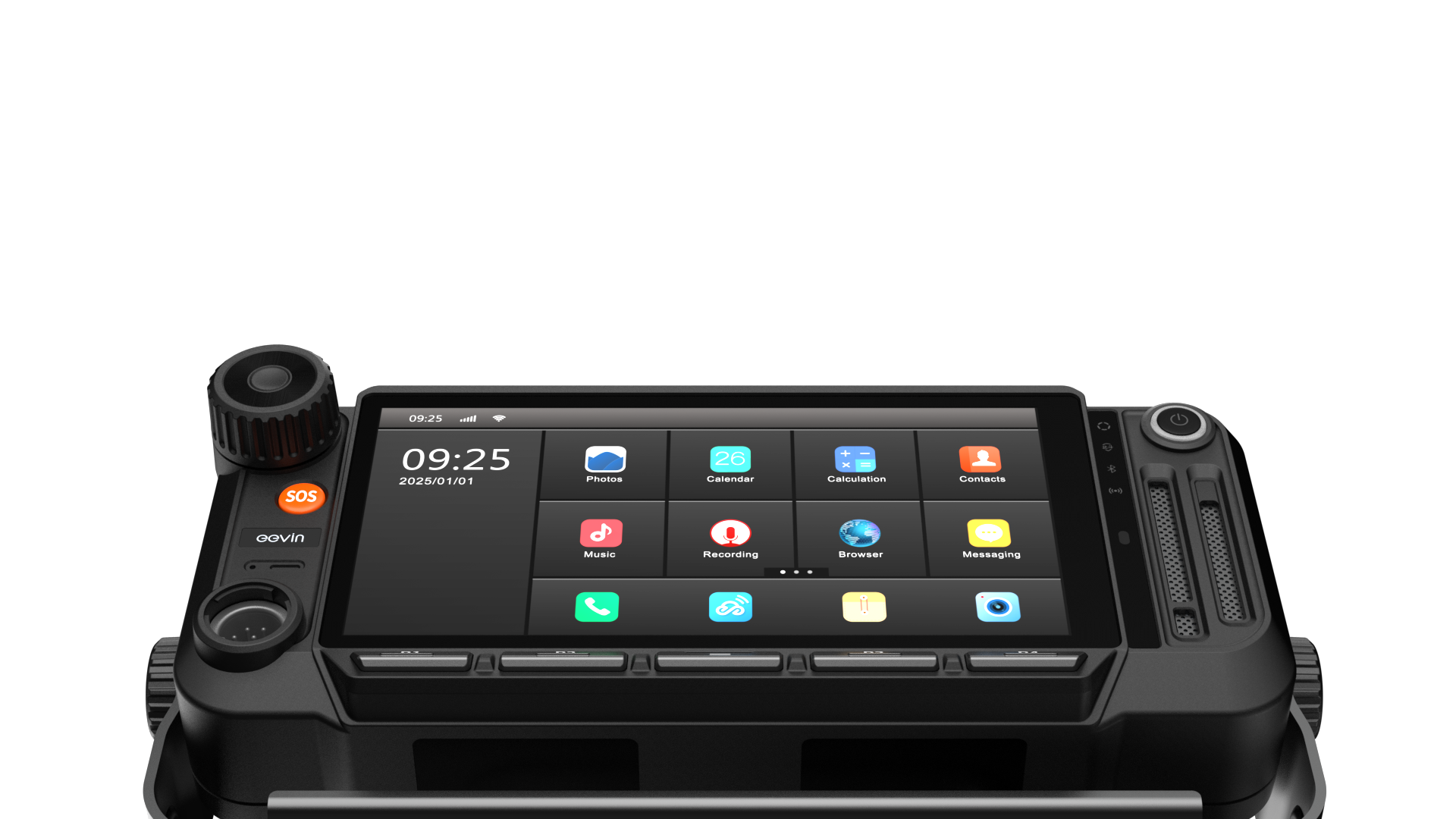

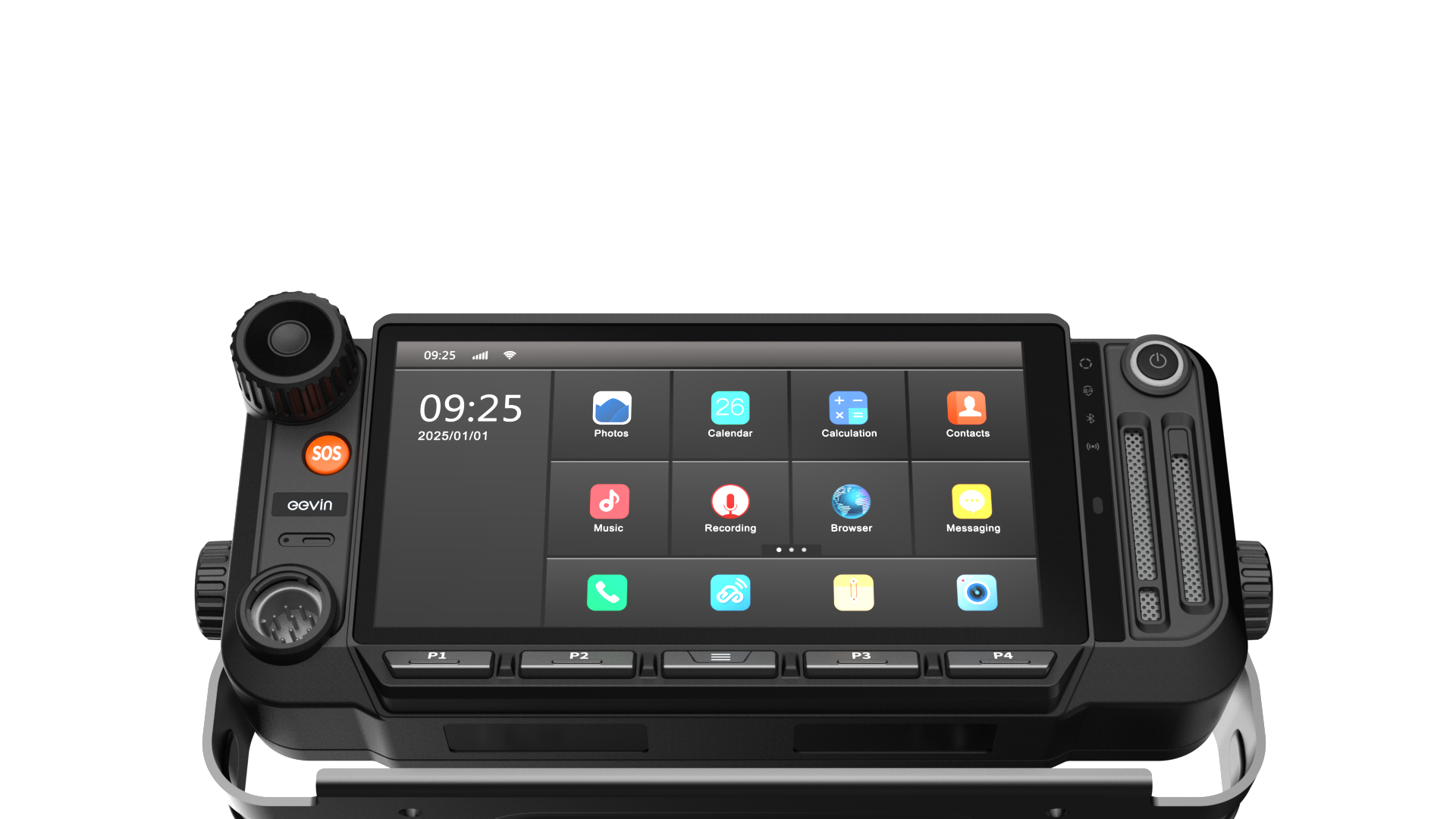

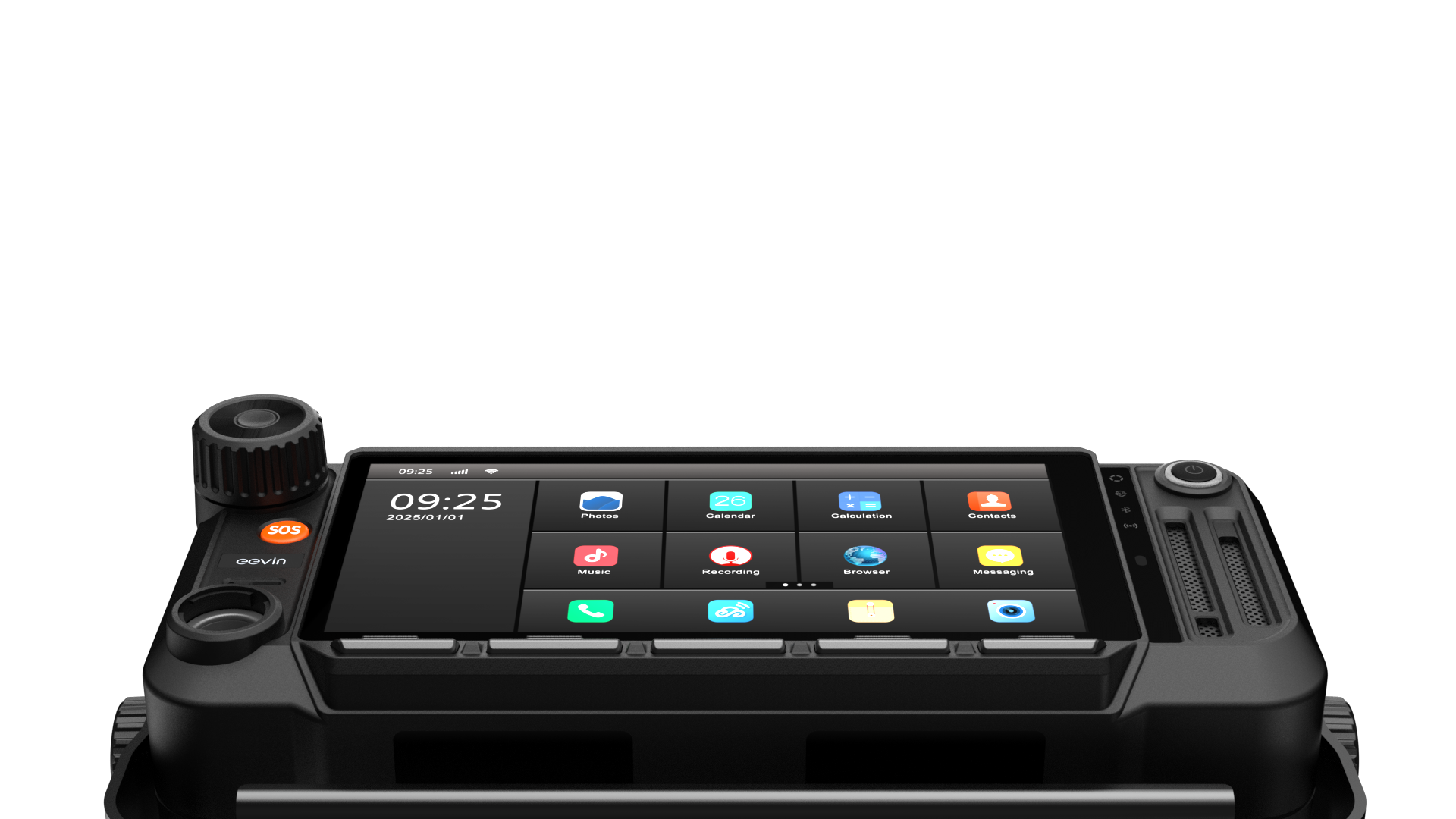

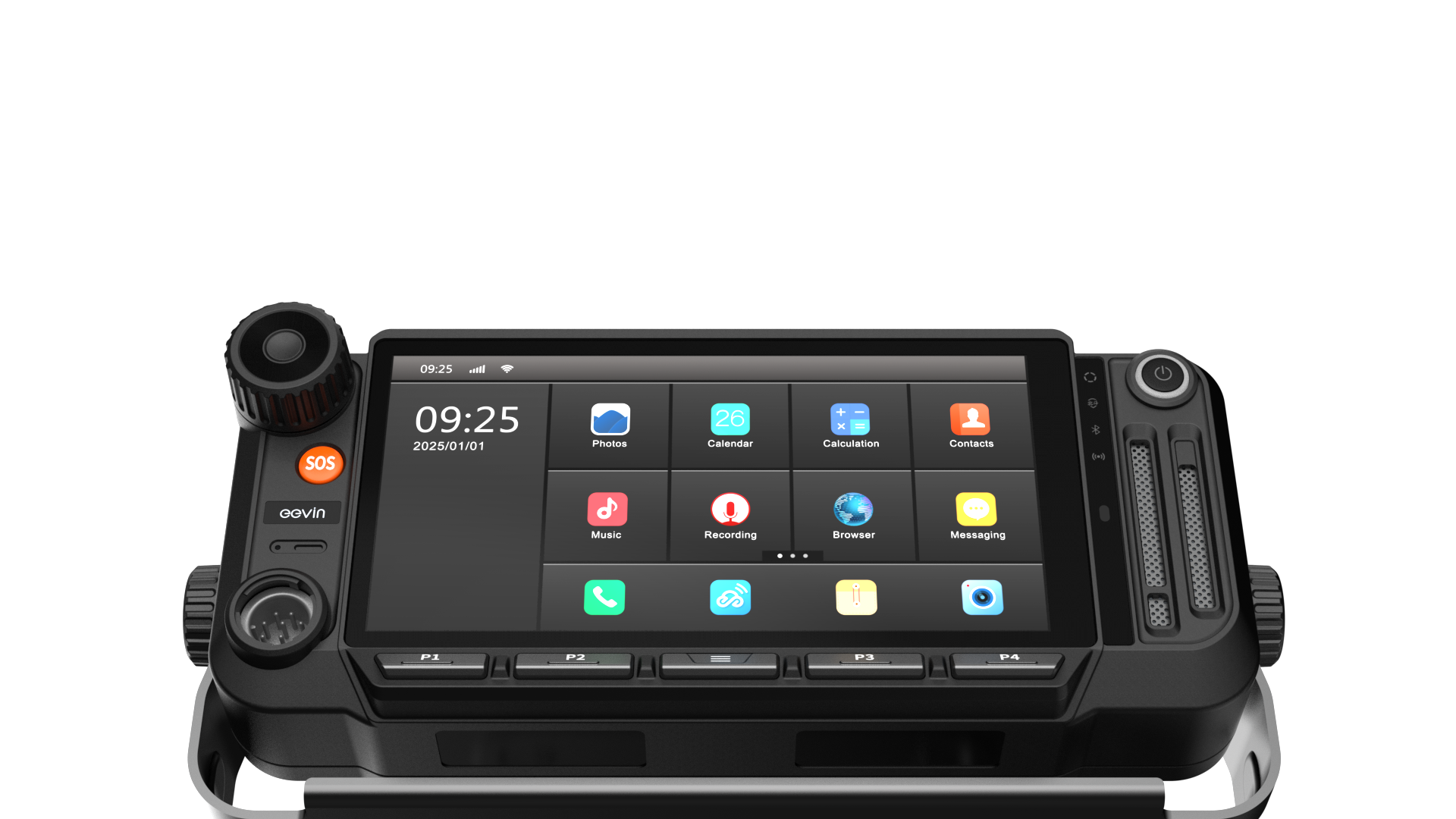

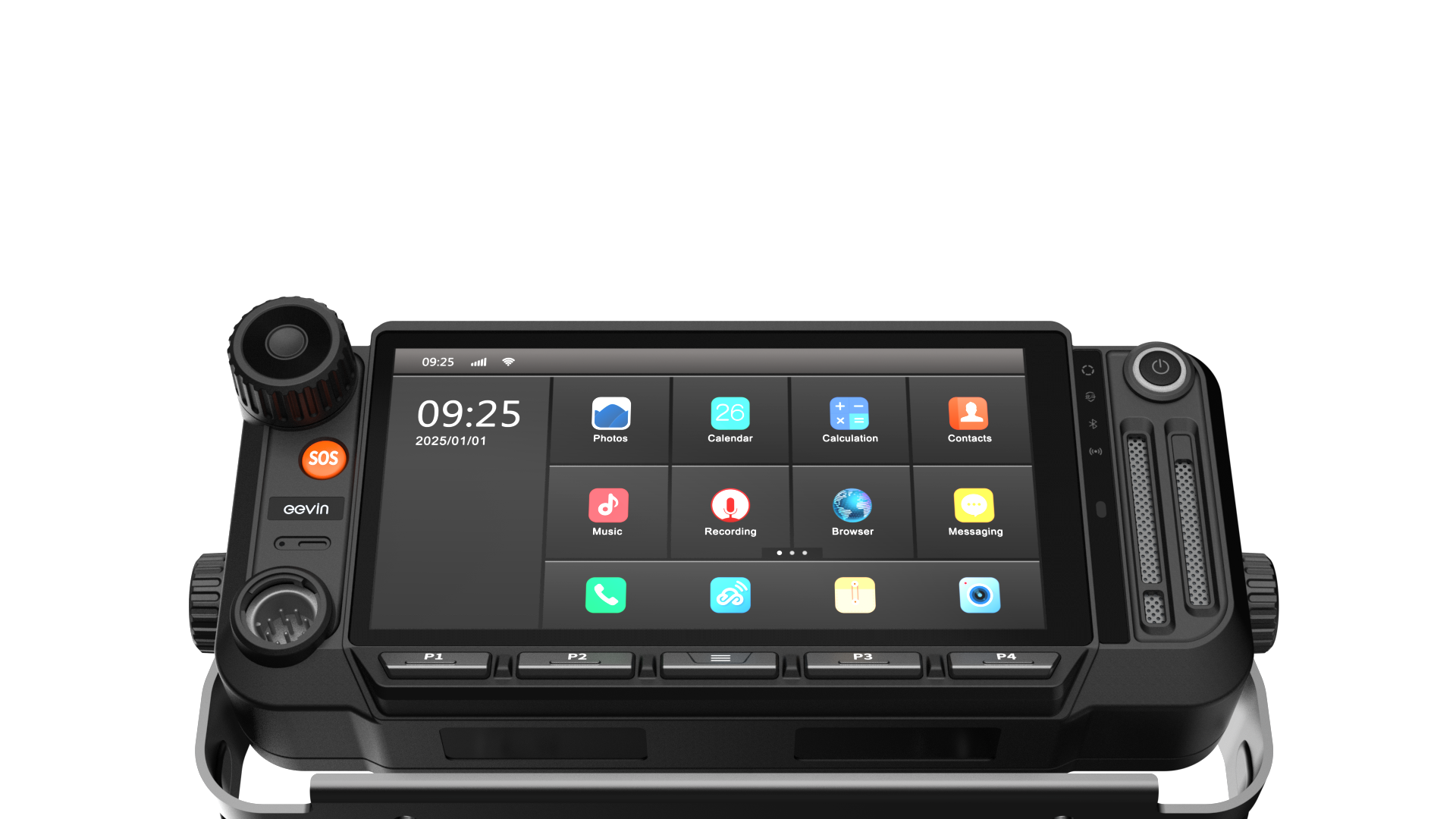

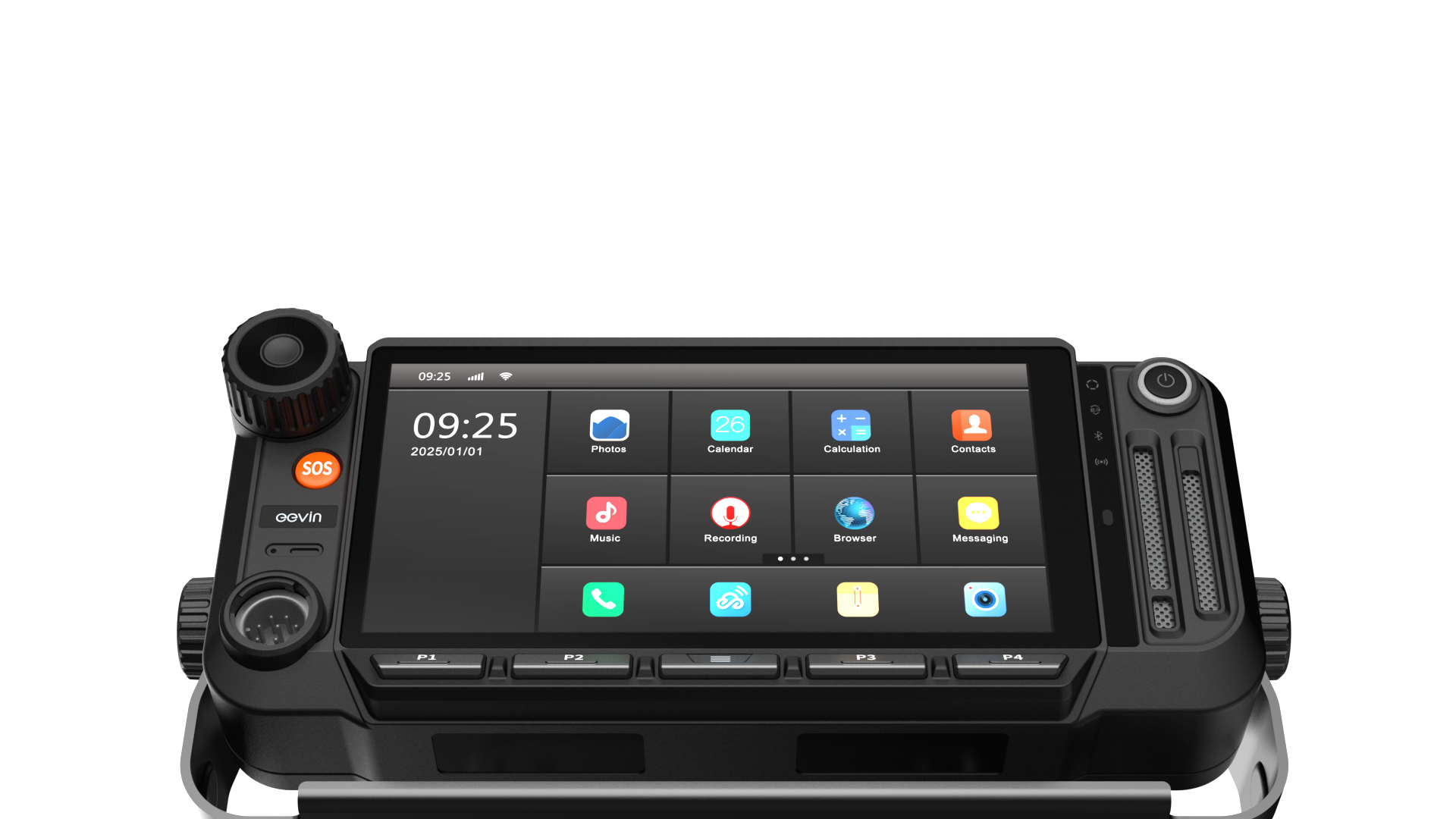

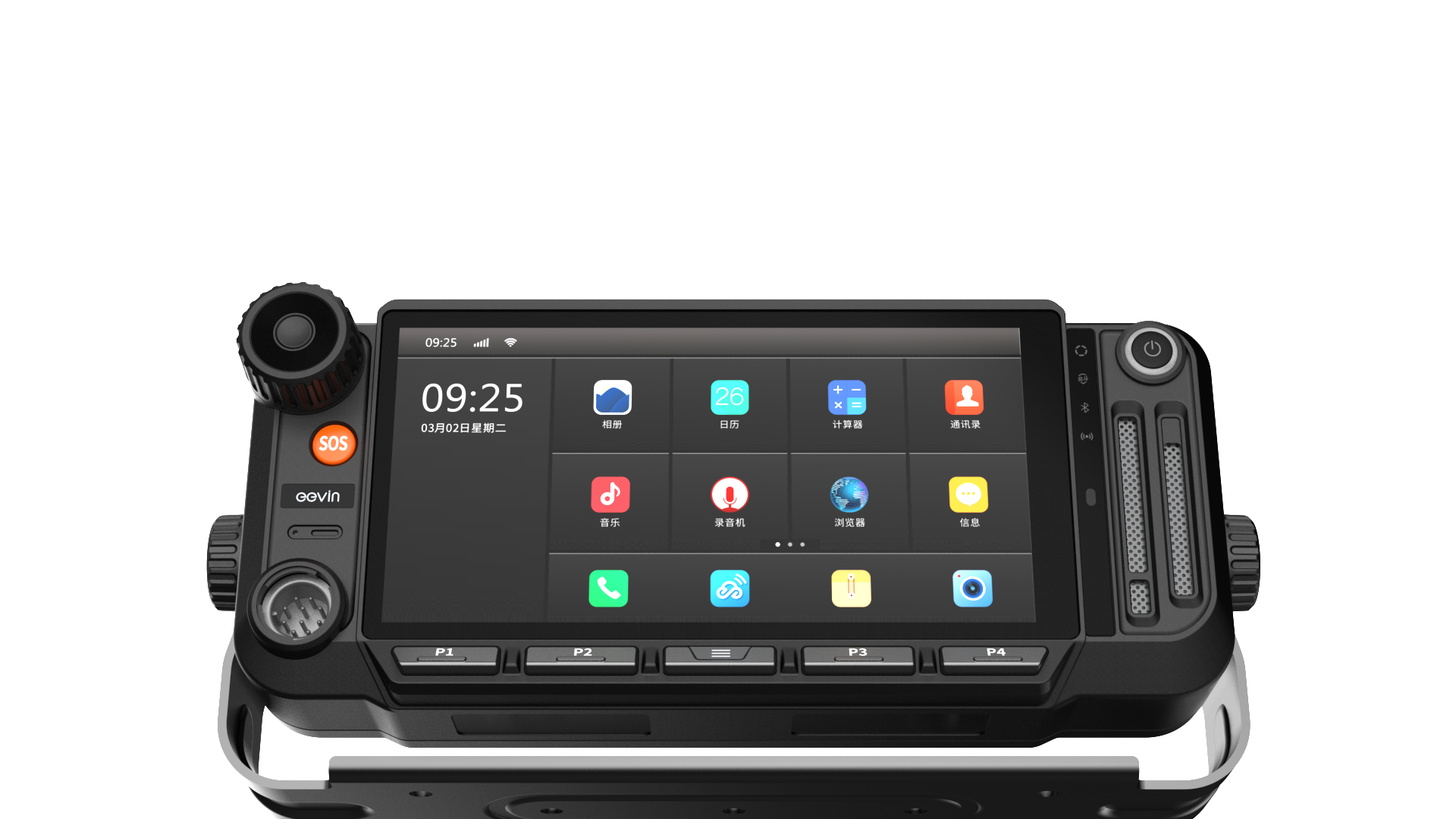

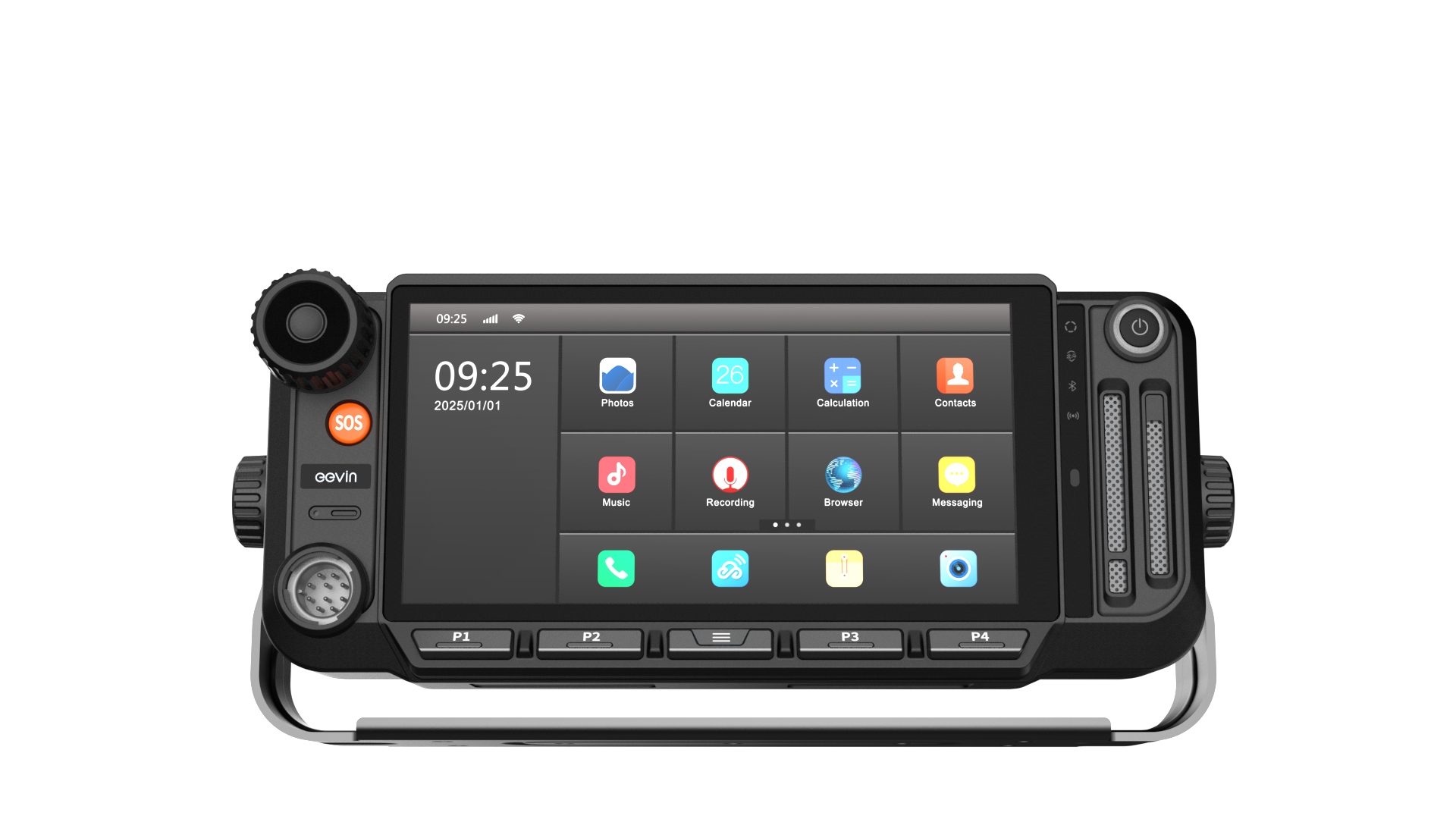

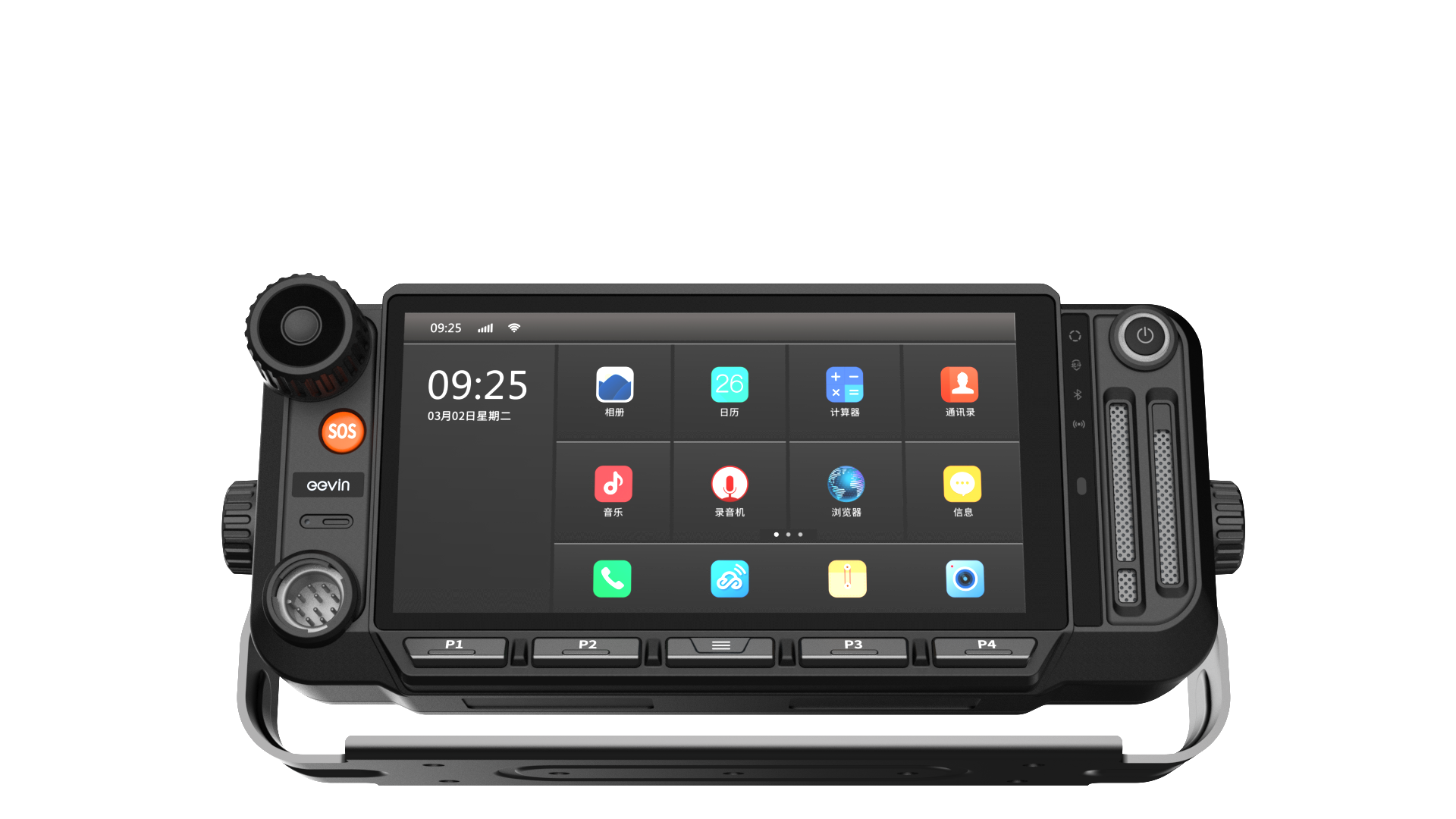

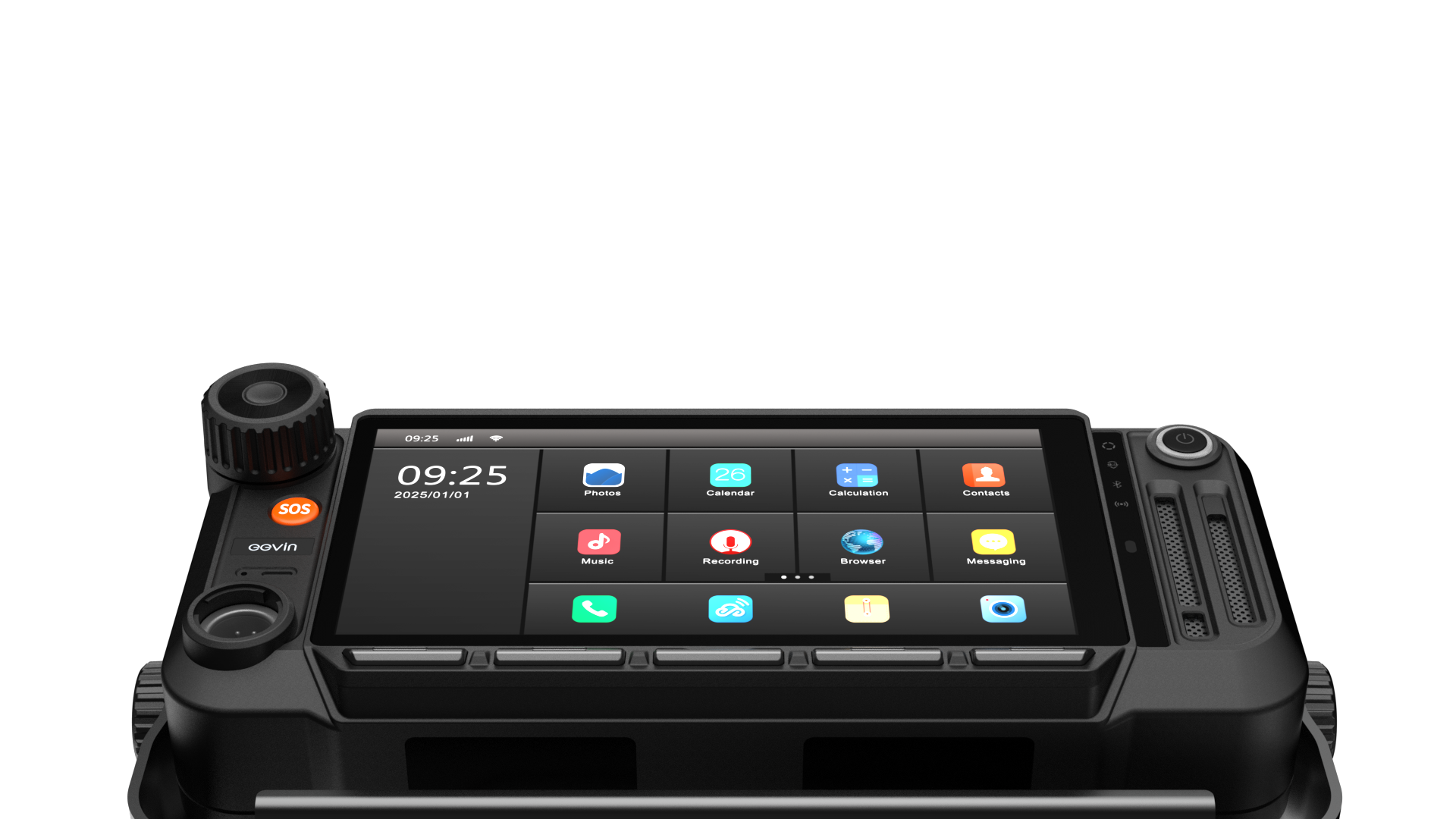

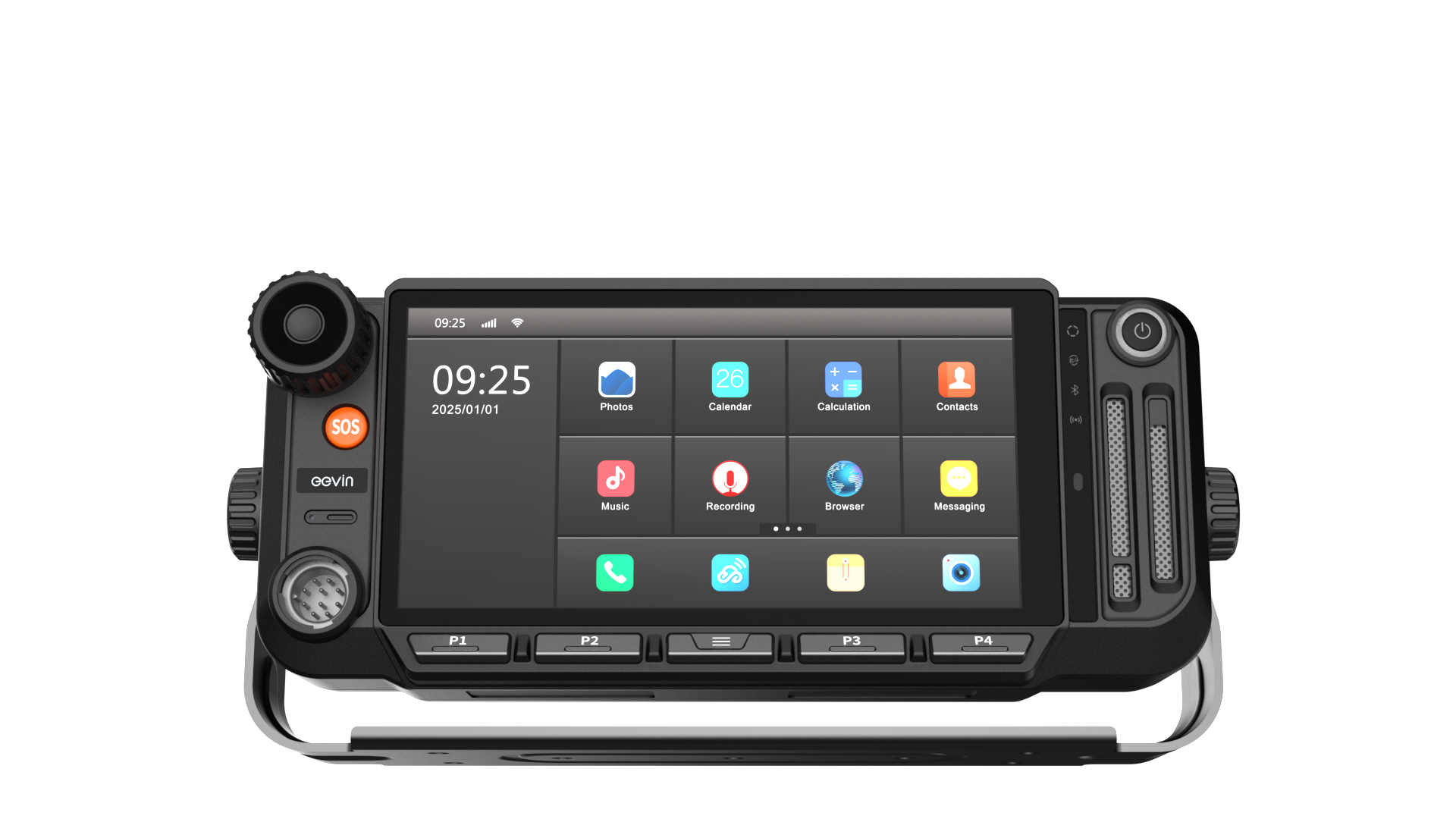

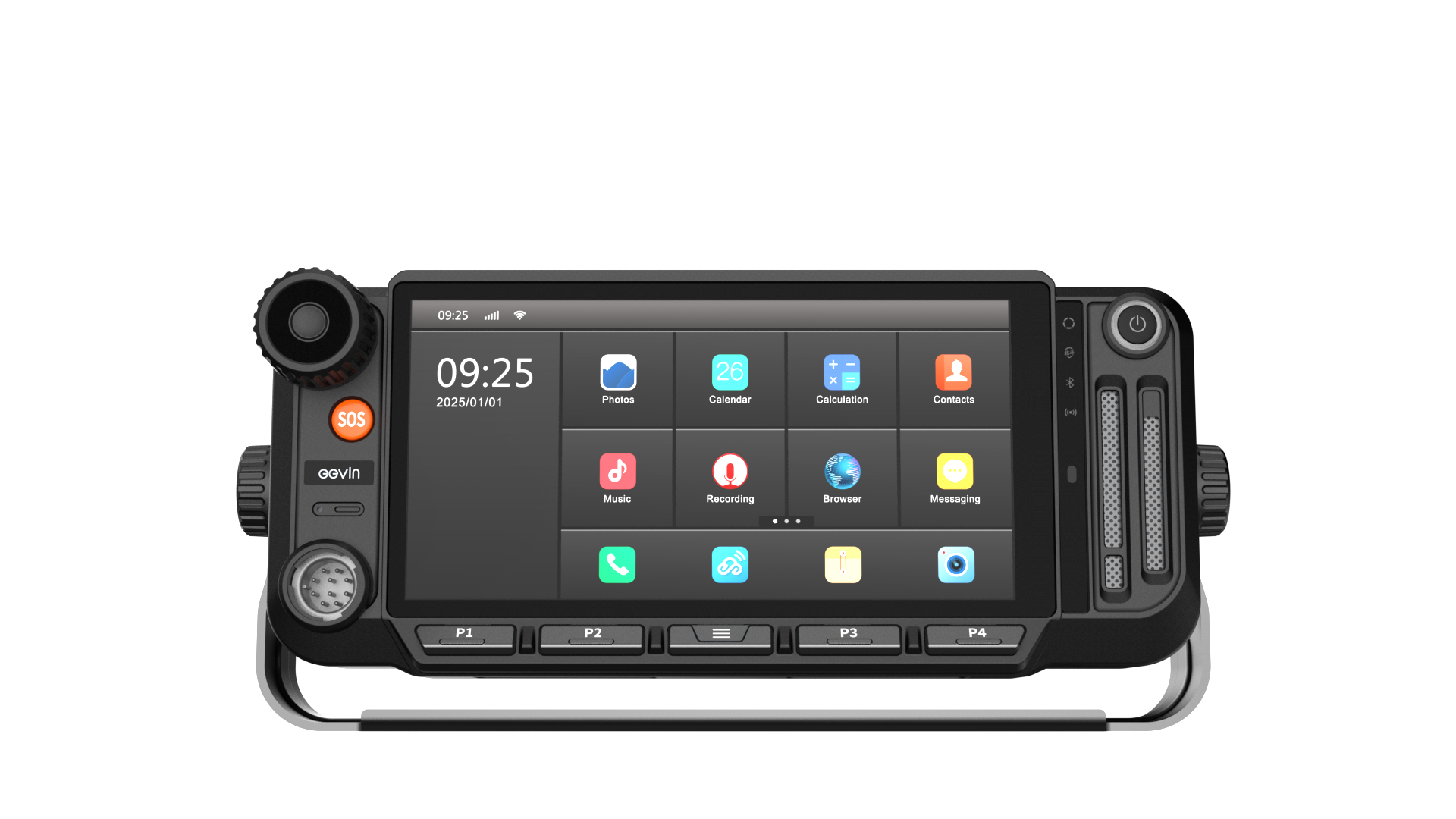

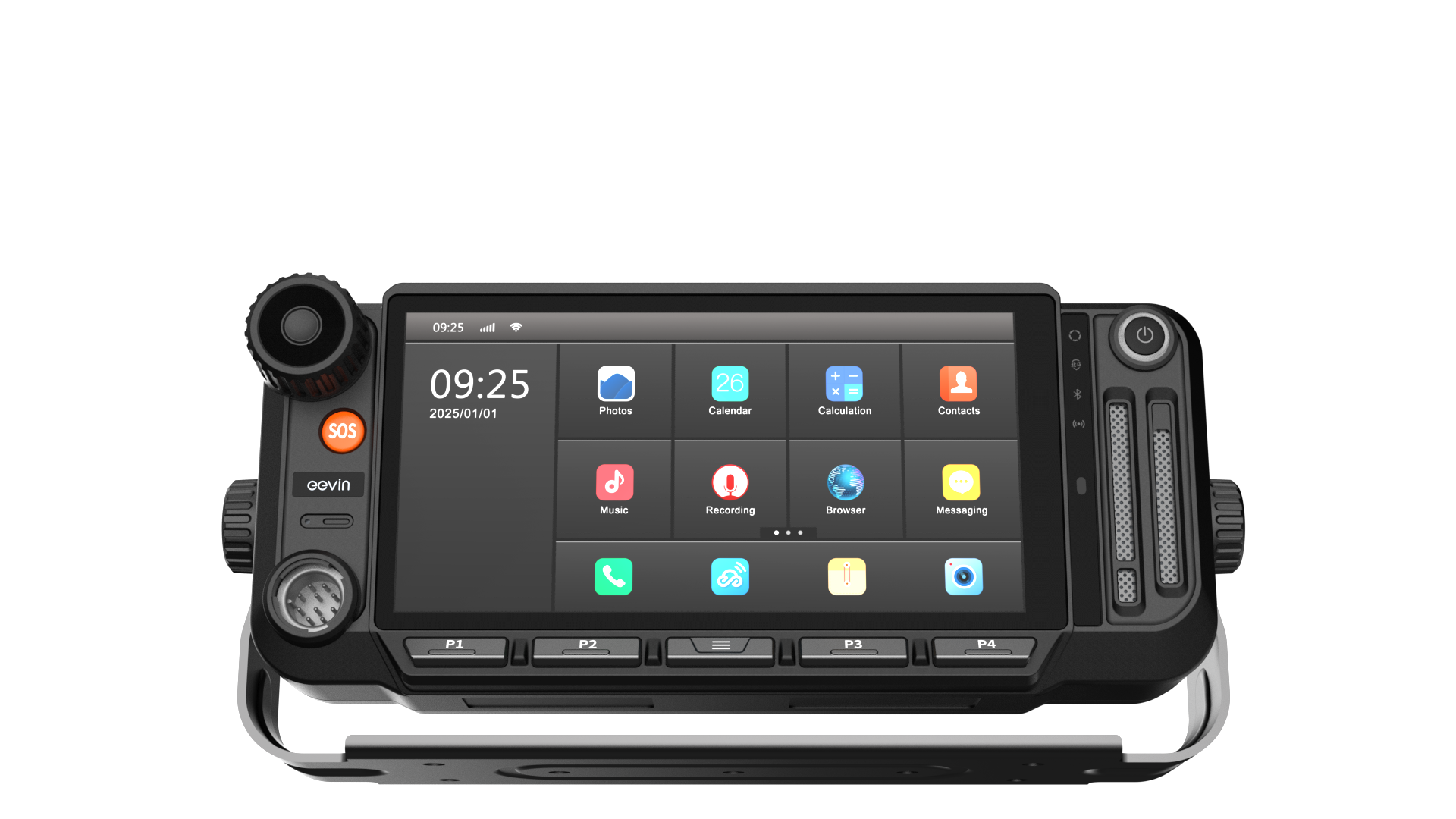

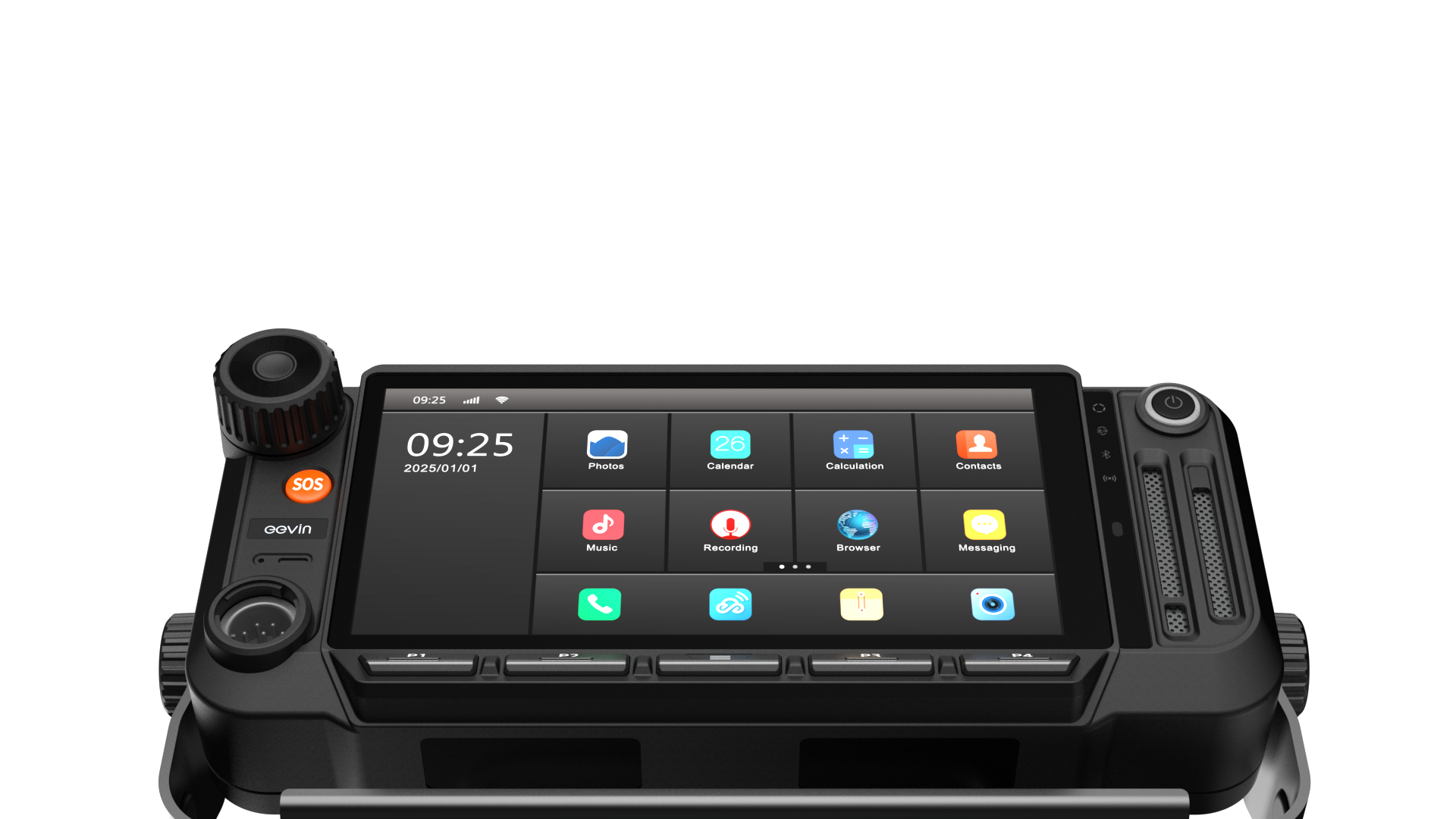

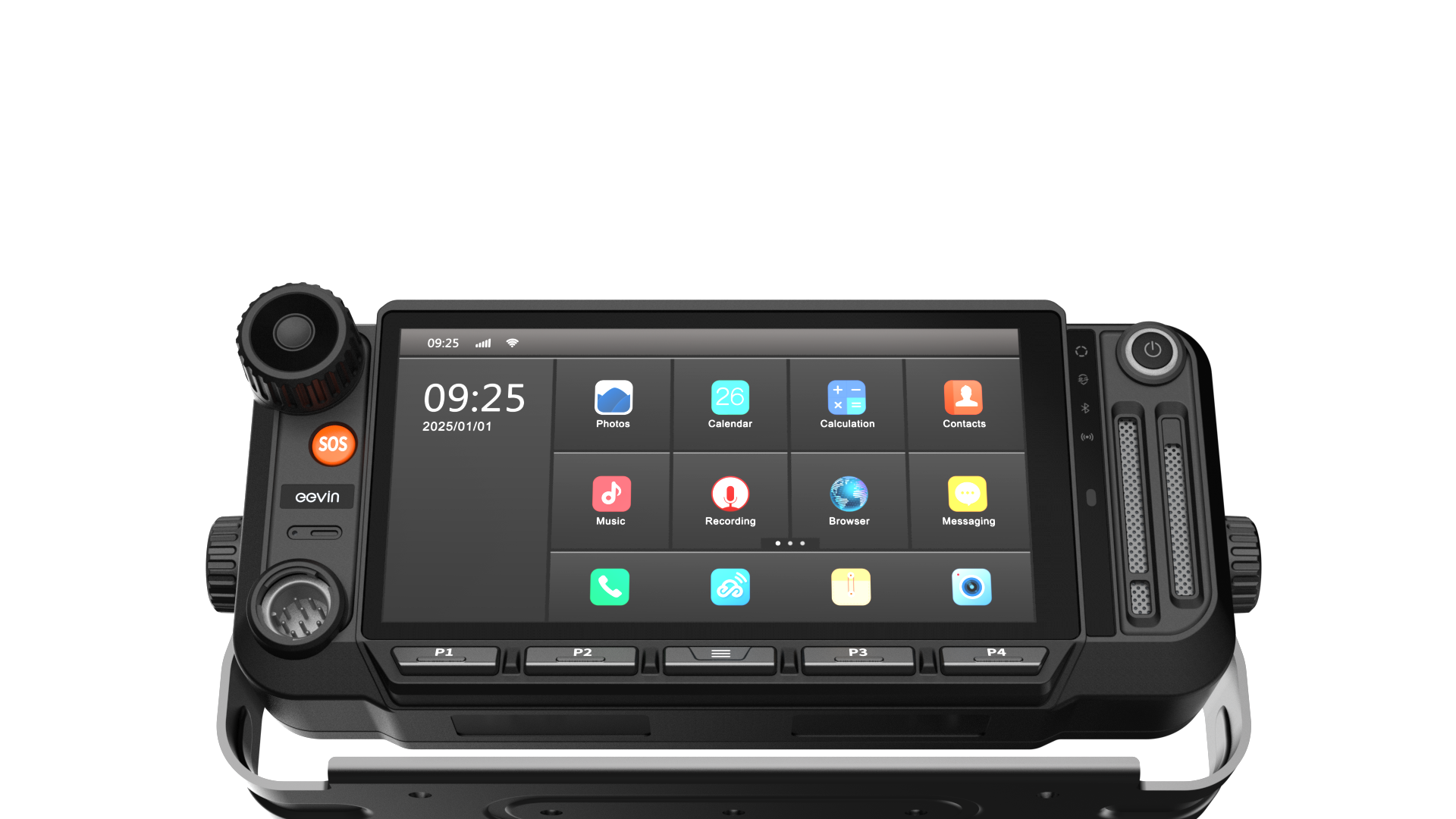

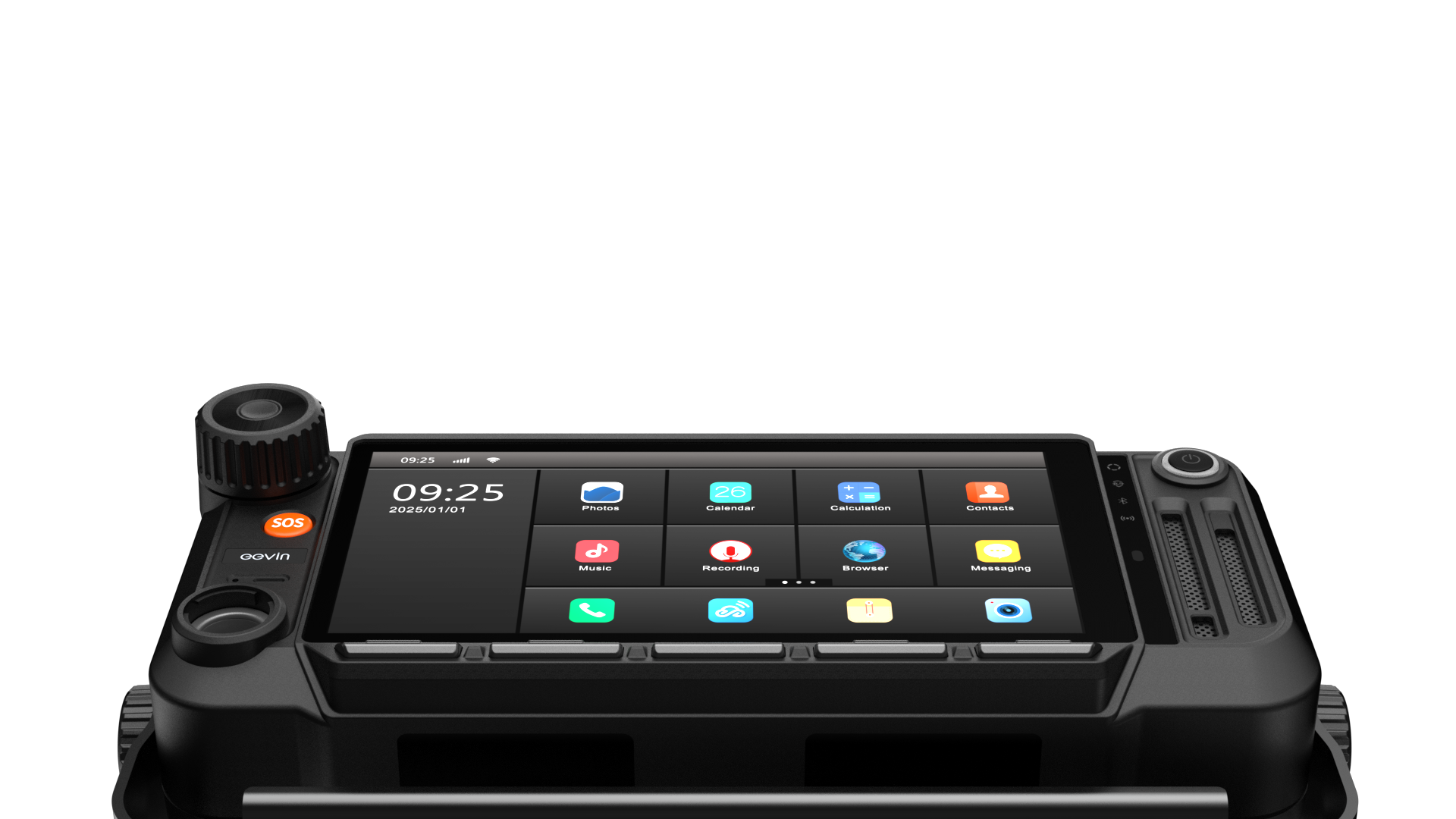

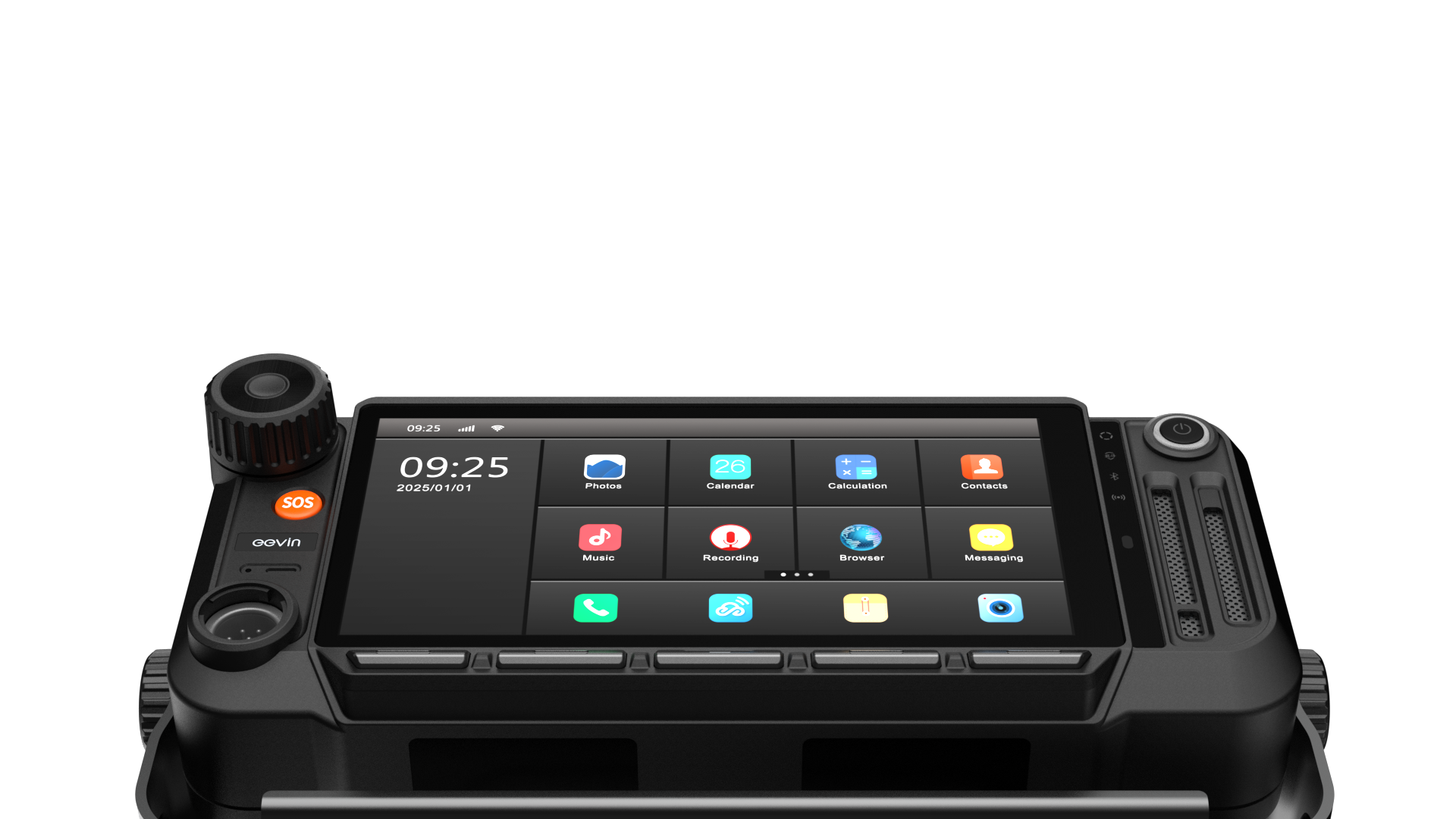

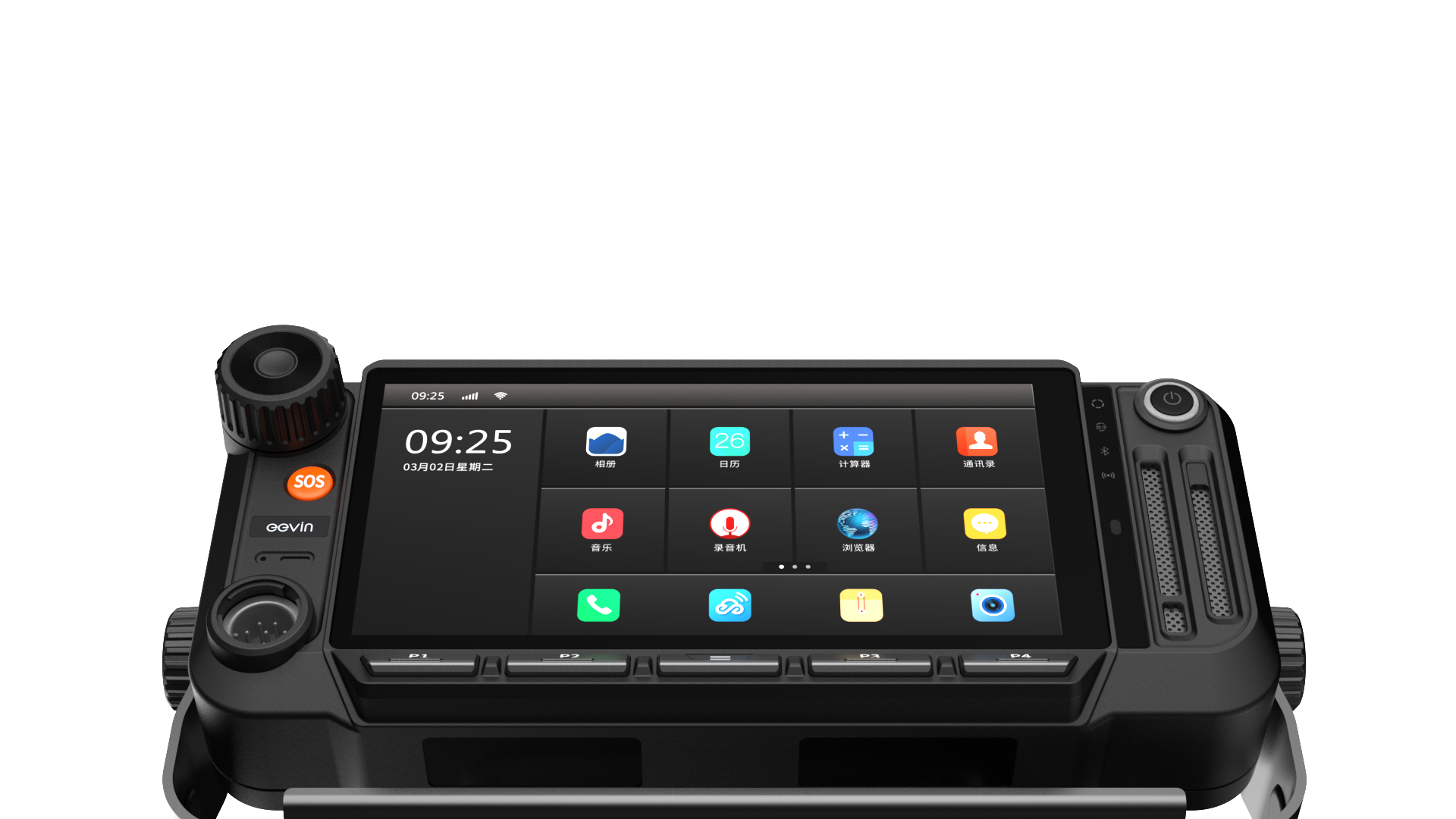

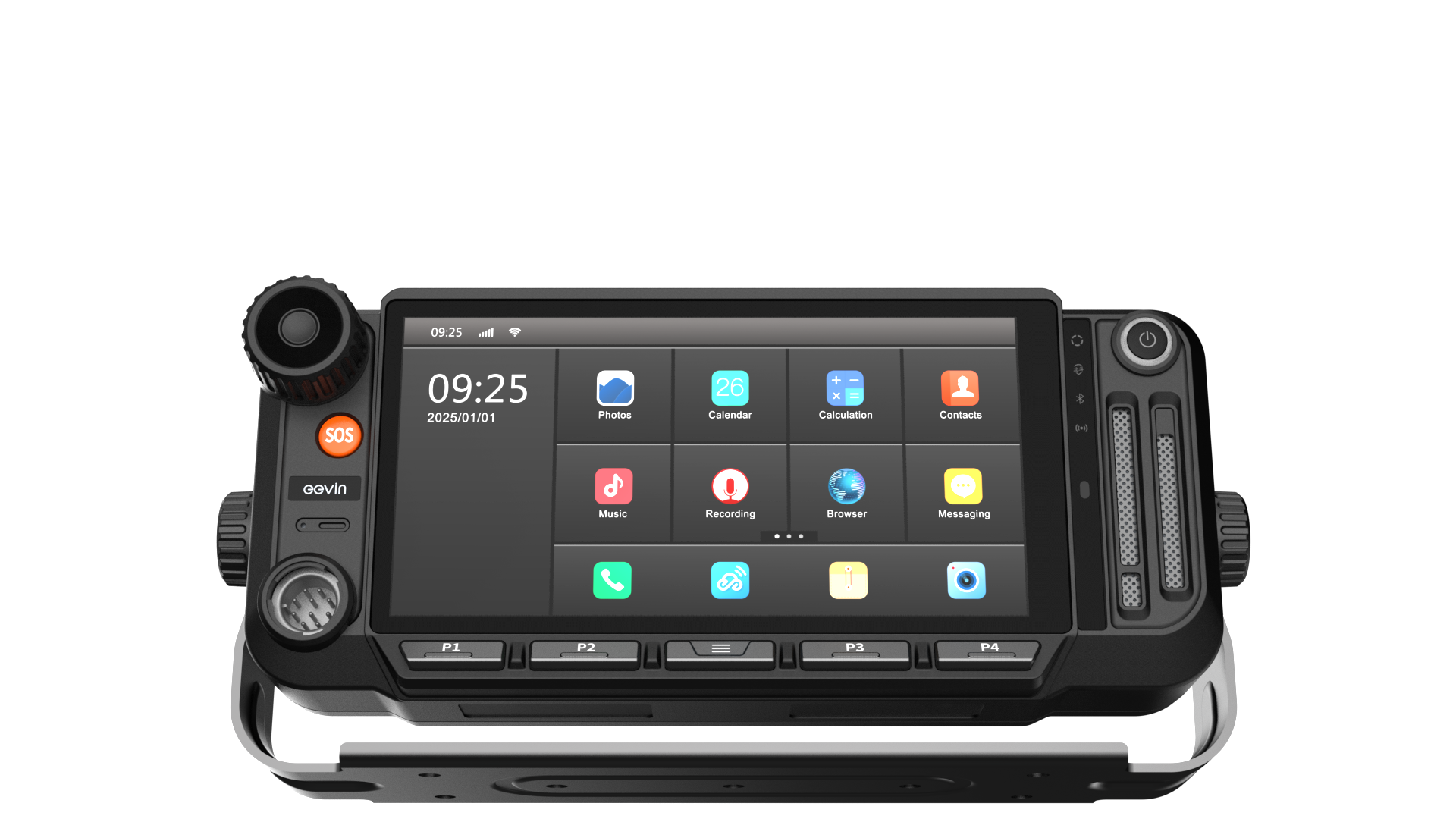

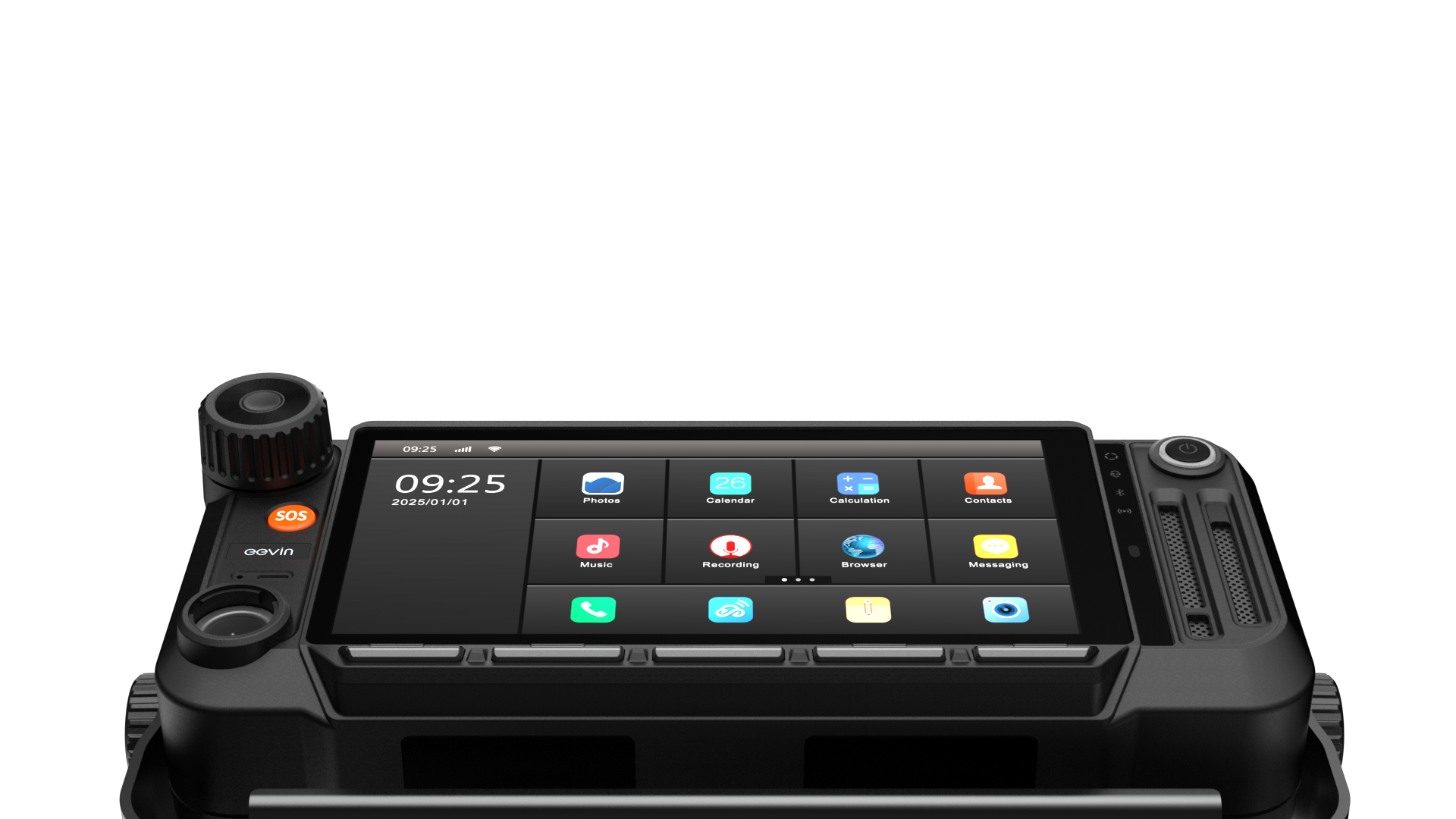

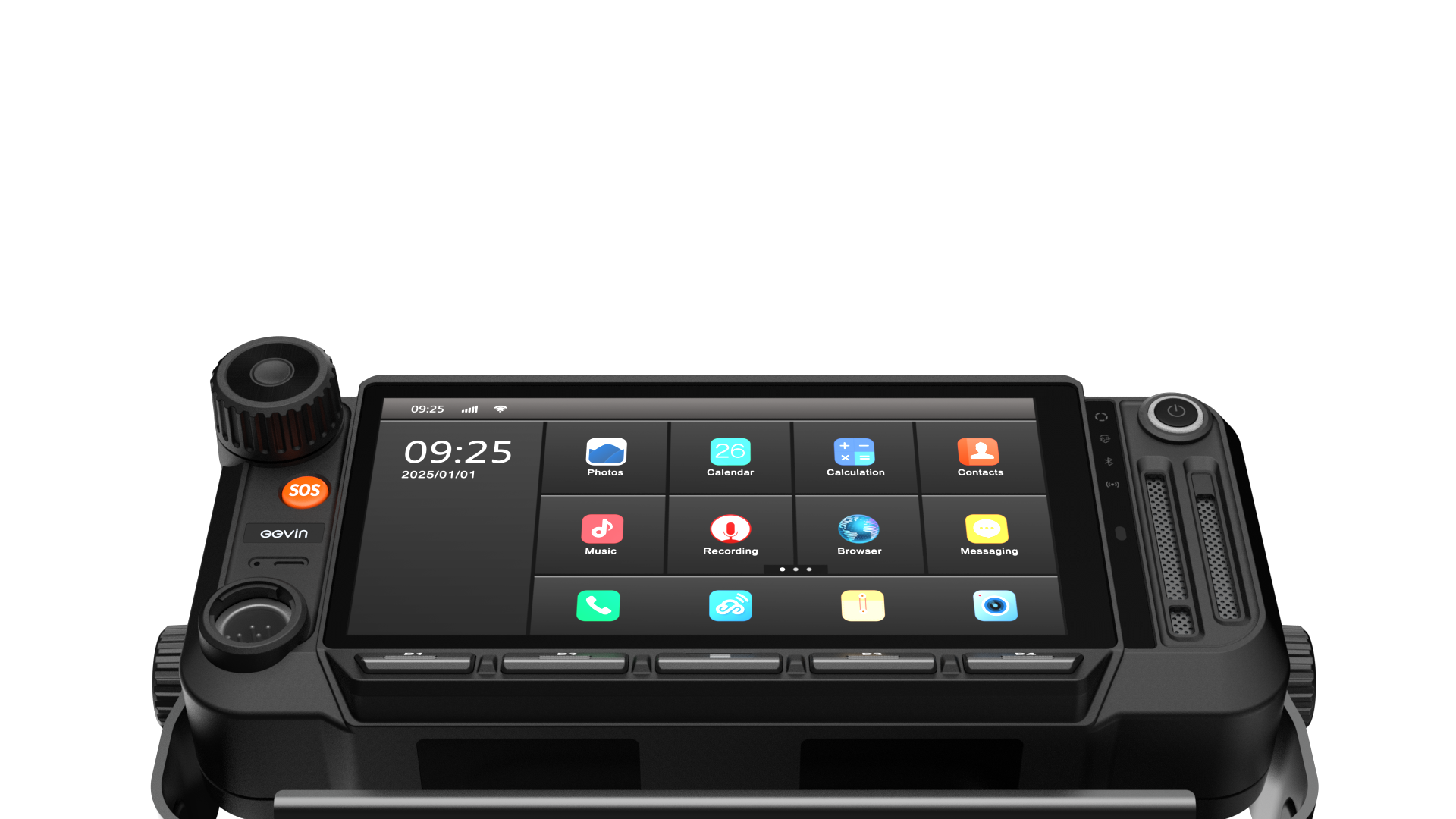

EC800 LTE Vehicle Terminal is a high-performance communication terminal customized for industry users. It is equipped with a 5.99-inch high-definition touch screen/5W high-power speaker, a customized Android operating system, can meet real-time voice and video calling, commanding and dispatching and other functions. Its external antenna design enhances signal strenth and stability.Supporting 3 extenal cameras and other accessories,catering to a variety of work needs.

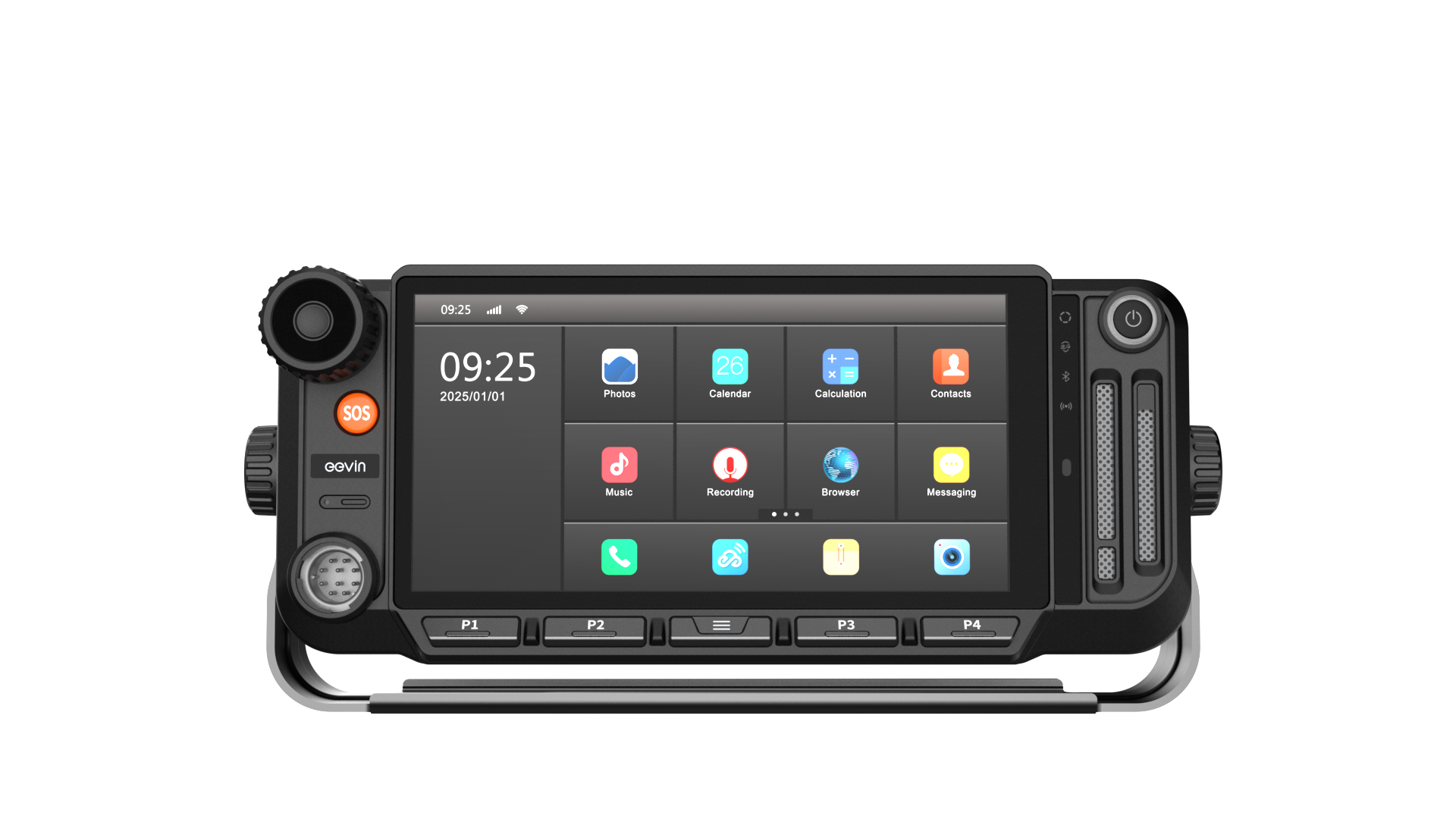

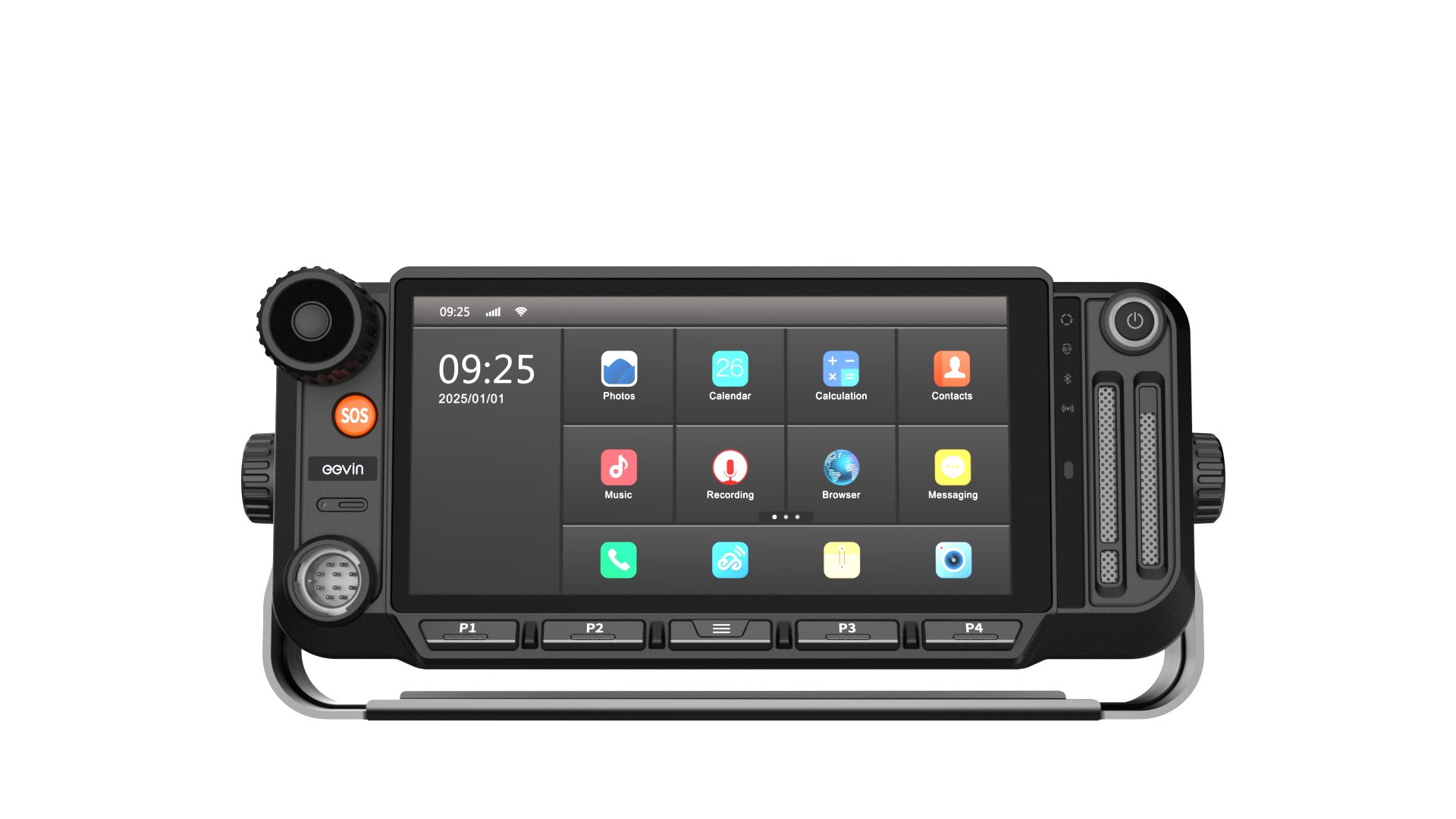

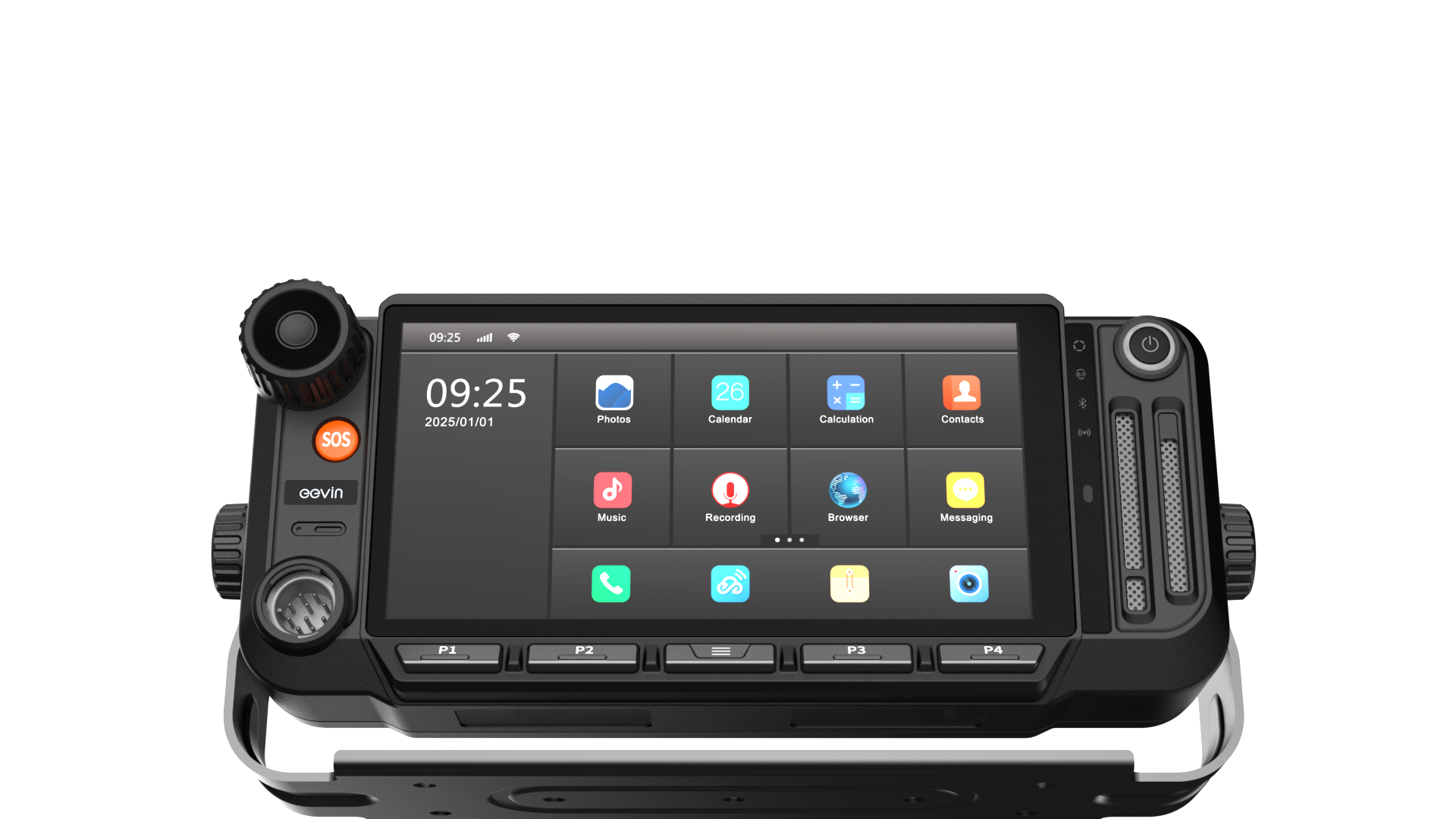

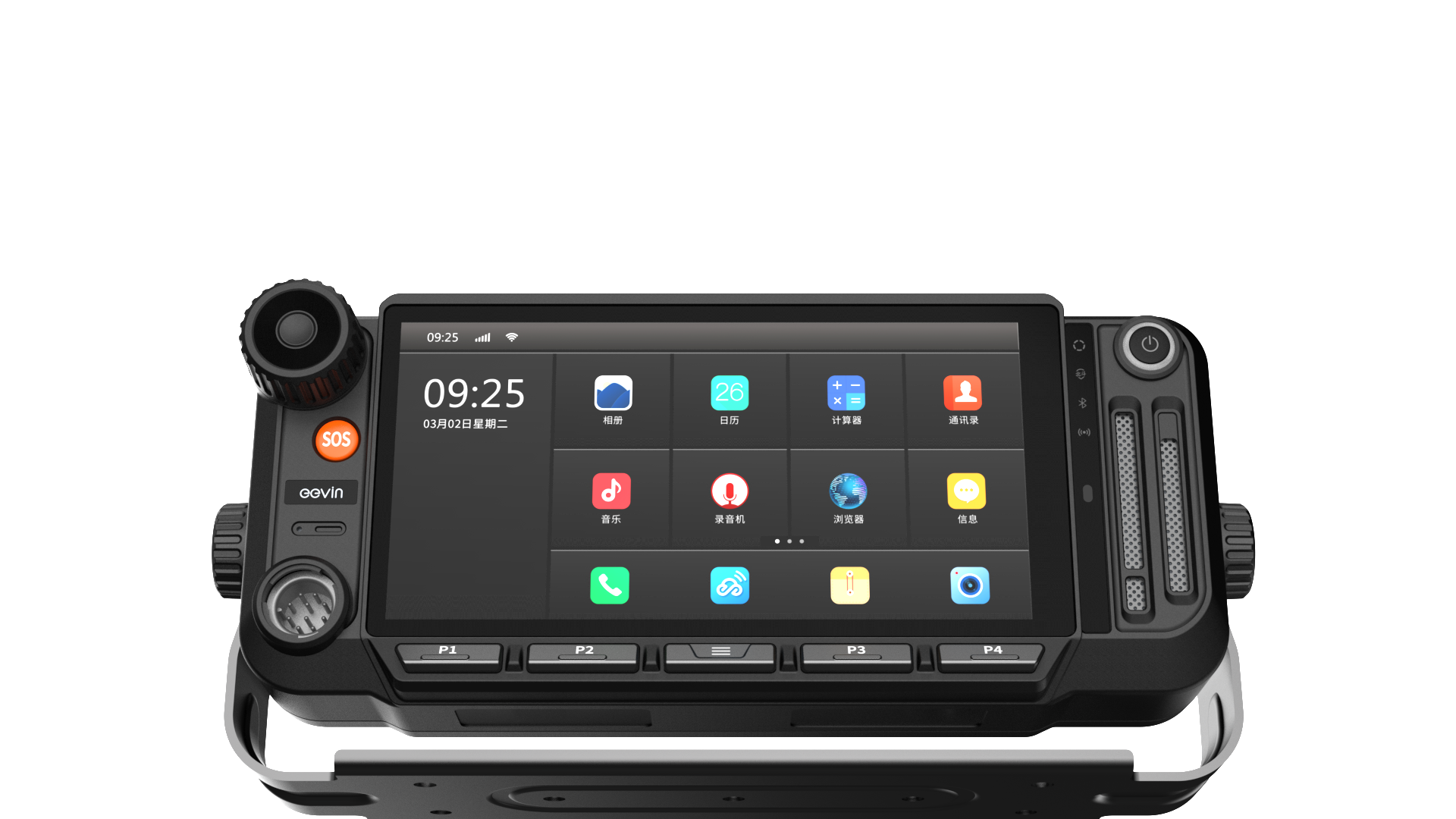

5.99-inch high-definition touch screen with multiple interfaces that can meet the connection of external cameras simultaneously for visual command and control
| Dimensions/Size | 212mm*93mm*58mm |
|---|---|
| Battery capacity | Weight: 442g (accessories not included) |
| Communication network | 3G:WCDMA:B1/B2/B5/B8; TD_SDMA:B34/B39; CDMA:BC0; 4G:LTE_FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B25/B26/B28A&B/B66; LTE-TDD:B34/B38/B39/B40/B41 . |
| Chip and system | Two ARM® Cortex-A75 cores operating up to 2.0GHz, running on Android 12.0 operating system. |
| Memory | RAM: 4GB, ROM: 64GB, expandable up to 128GB storage. |
| Card slot | Supports 1 SIM card slot and 1TF card slot. |
| Display screen | LCD 5.99 inch WVGA IPS screen(narrow screen），1080x2160，serial backlight. |
| Intercom performance | Equipped with a 5W high-power speaker. |
| Keypad/buttons | Power button*1;channel knob*1;SOS button*1;Home button*1;Programmable buttons*4. |
| Localization function/Positioning capability | GPS/BeiDou/GLONASS/AGPS. |
| Wireless connectivity | Supports wireless connections including Bluetooth 5.0, 2.4G/5G WiFi. |

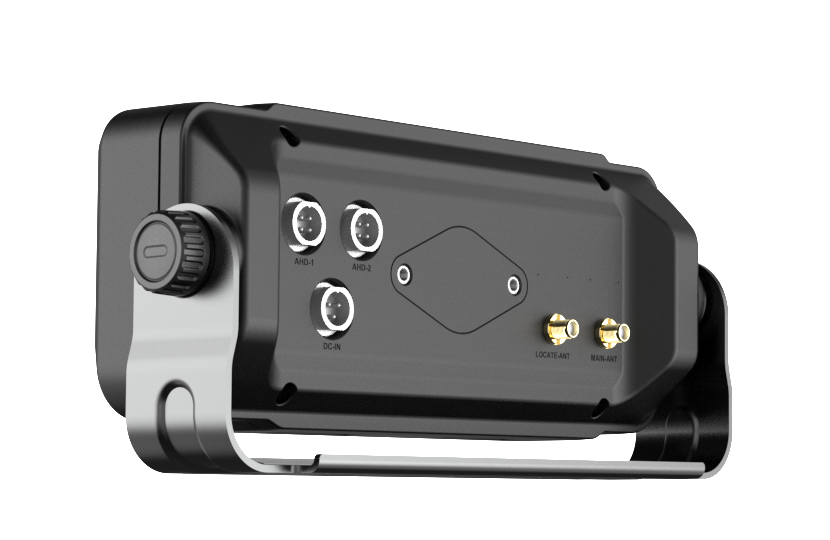

| Expansion interface | Antenna interfaces(SMA)*2;10 pin aviation interface*1; 4pin aviation interface*1;TYPE-C interface*1 ; 3 pin aviation interface*2; 3.5mm audio interface*1. |
| Protection performance | IP54 waterproof and dustproof rating. |
| Member Information | |
|---|---|
| Address Book |
|
| Personnel Status and Location Information |
|
| Device Status |
|
| Voice Dispatch | |
| Group Call |
|
| Private Call |
|
| Temporary Group Call |
|
| Network Adaptive Function |
|
| Secure Encryption |
|
| One-Button Alarm |
|
| IP Two-Way Voice Call | |
| IP Two-Way Video Call | |
| IP Voice Conference | |
| Call Command Center | |
| Video Dispatch | |
| Video Push and Pull | |
| Simultaneous Voice Intercom during Video Push and Pull | |
| Network Adaptive Jitter | |
| Video Recording Storage | |
| Recording Playback | |
| GIS Map Dispatch | |
| Display of Terminal Online and Offline Status |
|
| Terminal Positioning Supporting Pure GPS and Hybrid Positioning Simultaneously |
|
| GIS Map Monitoring |
|
| Real-Time Positioning and Tracking |
|
| Historical Trajectory Playback |
|
| Multimedia Messaging | |
| Intra-group Multimedia Messages |
|
| Image, Voice, and Video Sending | |
| Image and Video Capture and Transmission | |
| Broadcast Messages |
|
| Dispatch Console Information Query and Preview |
|
| Task Management | |
| Task Assignment |
|
| Task Feedback and Completion |
|
| Task Inspection and Verification |
|
| Workflow Applications | |
| Attendance Check-In and Check-Out |
|
